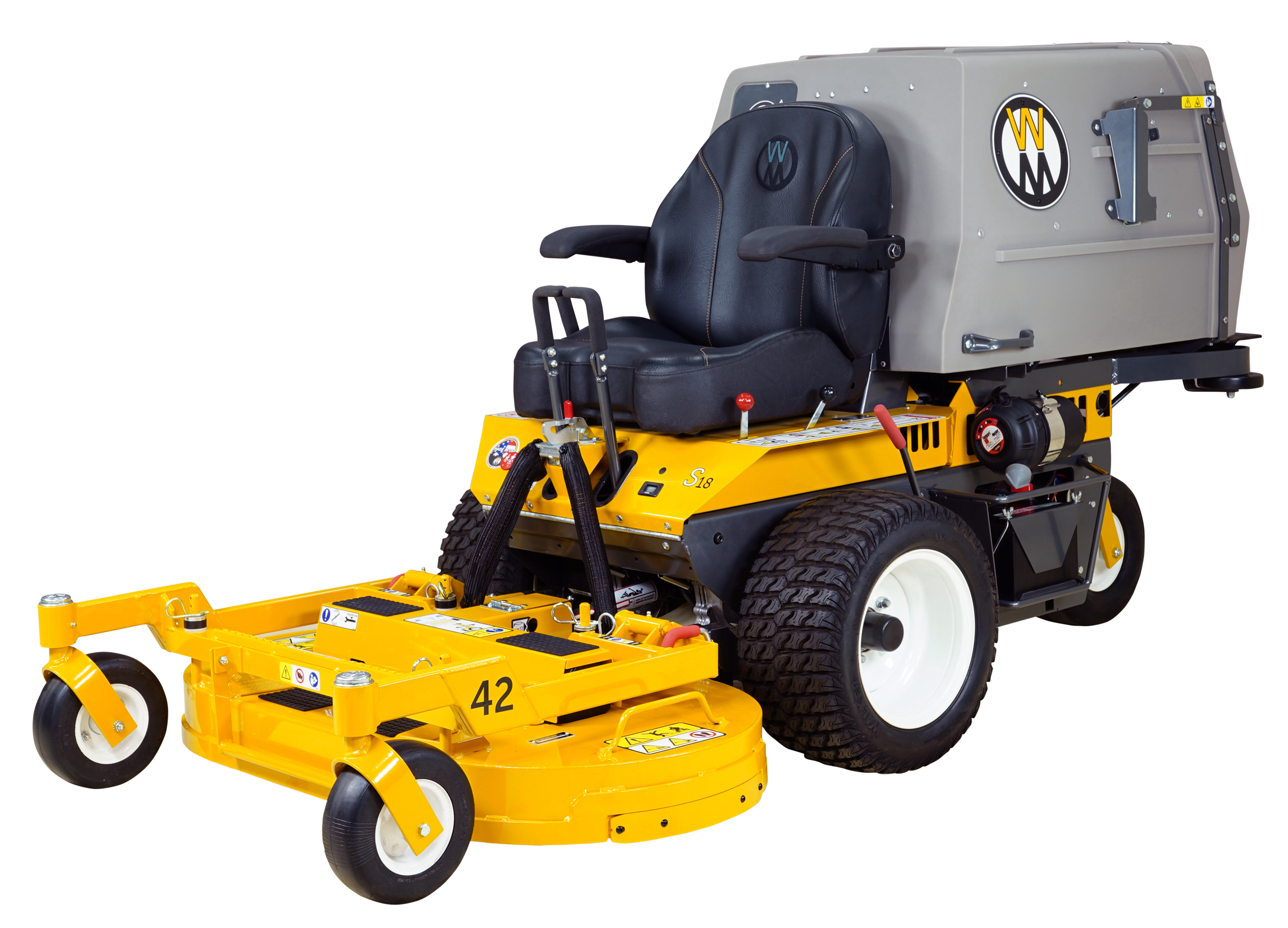

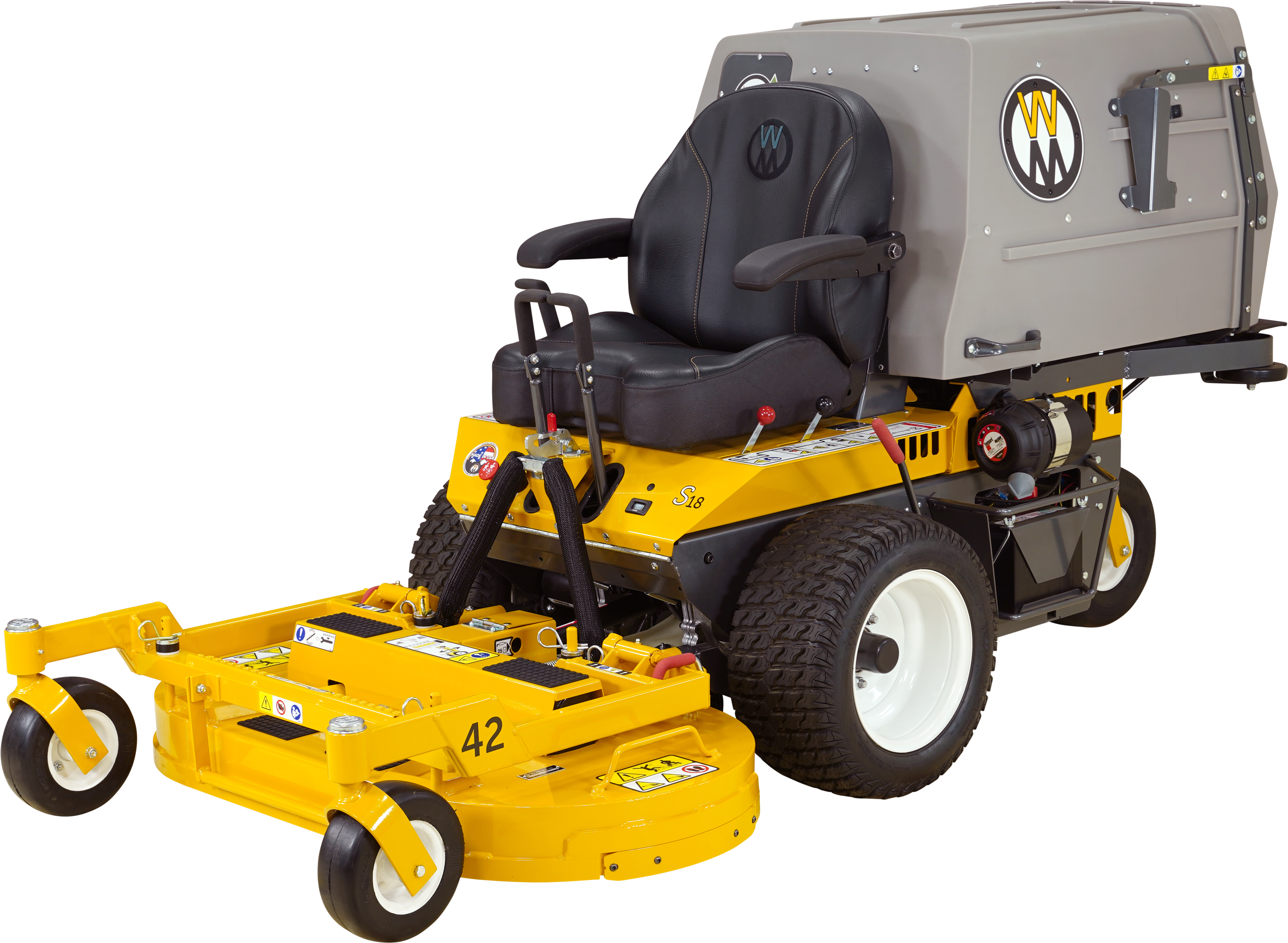

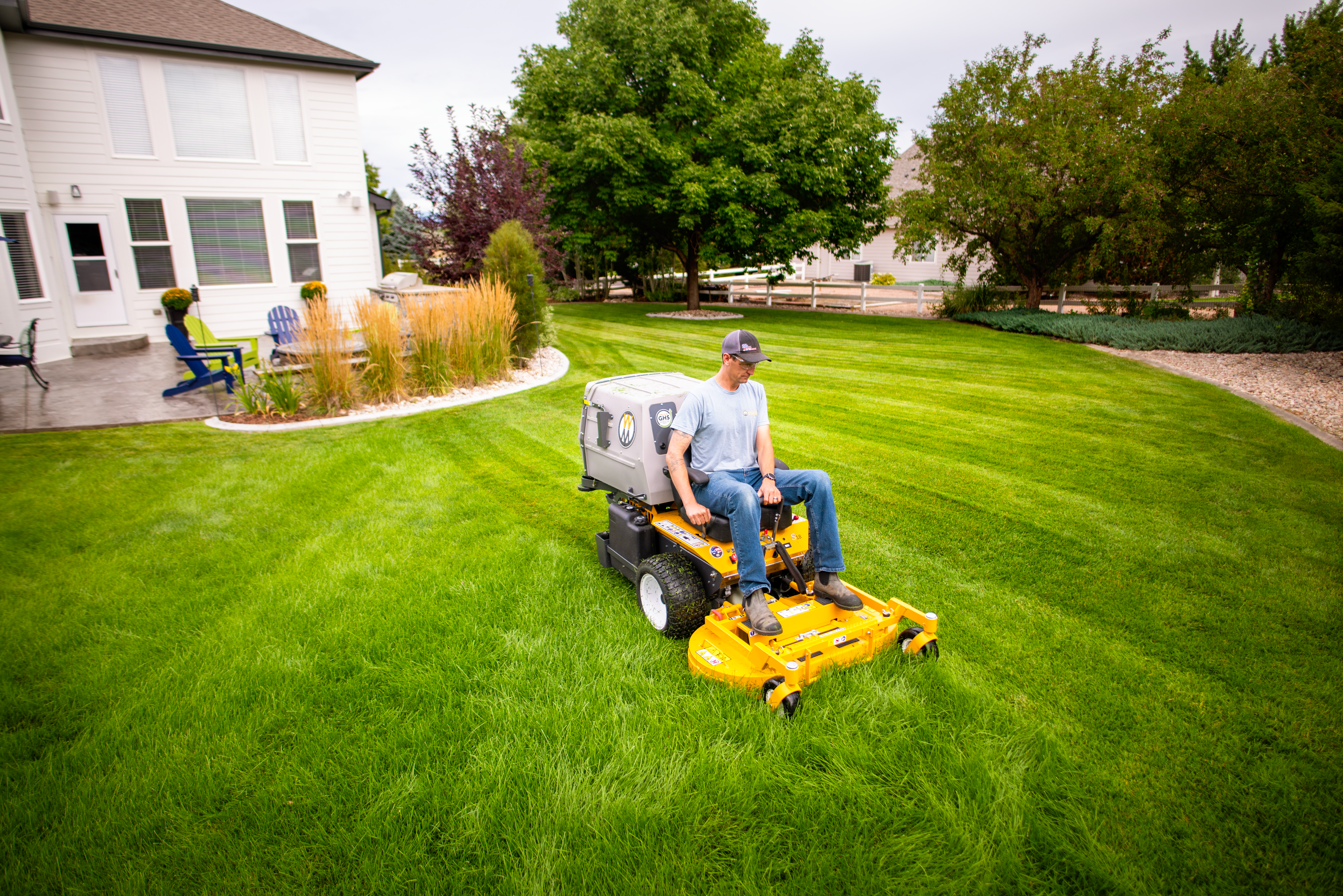

Model S18

A simplified design with improved performance

Group 1 1

overview

The Model S is the quintessential Walker Mower. Inspired by the original 1977 prototype, the Model S is simple and easy to operate and very efficient at mowing residential properties. With Walker’s Grass Handling System®, a patented Blower Shaft PTO® design, and reduced weight and cost, the Model S is the perfect entry-level mower for experiencing Walker’s signature beautiful cut and zero-turn productivity.

Type: Collection
Power: 18 HP
Engine: Briggs & Stratton Vanguard

$17,990 - tractor only

Specifications

Type: Collection

Power: 18 HP

Engine: Briggs & Stratton Vanguard

Ideal Application: Residential Properties, Small Commercial Properties

Key Attributes: Compact, Agile, Productive

Standard Options:

18 x 7.0-8 Turf Tyre, Standard Seat


Additional Specifications:

Engine Specifications

Engine: Briggs & Stratton Vanguard

Fuel Capacity: 15.1 litres

Fuel system: Carb

Seat:

Comfort Seat

Cooling System: Air

Tyres: Standard Low Profile Tyres

Displacement: 570 cc (34.8 cu. in.)

Dimensions: 165 cm L x 98 cm W x 118 cm H (Tractor only - deck not included)


Additional Specifications:

Warranty

2

YEARS

ENGINE

2

YEARS

OR 2000 HOURS ON DRIVE SYSTEM

2

YEARS

ENTIRE TRACTOR

model
comparison

Model IconENGINEFUEL SYSTEMCOOLING SYSTEMDISPLACEMENTMAX POWERMAX TORQUEFUEL CAPACITYSEATWEIGHT
https://walkermowers.com.au/wp-content/uploads/2022/02/Model-Icon-S18.pngBriggs & Stratton VanguardCarbAir570 cc (34.8 cu. in.)18 HP @ 3600 RPM29.2 ft-lbs15.1 litres

Comfort Seat

289 kg (tractor only)S
https://walkermowers.com.au/wp-content/uploads/2022/02/Group-2.webpKohler Command Pro CH680CarbAir674 cc (41.1 cu. in) cc22.5 HP @ 3600 RPM36.8 ft-lbs17.8 litre

Comfort Seat

277kg (Tractor only - no deck)B
https://walkermowers.com.au/wp-content/uploads/2022/01/Group-1131-3.pngBriggs & Stratton VanguardEFIAir993 cc (60.6 cu. in.) cc37 HP @ 3650 RPM53 ft-lbs35.6 litres

Suspension Seat

610 lbs (277 kg) 1 848 lbs (385 kg) H
https://walkermowers.com.au/wp-content/uploads/2022/01/Group-1131-2.pngKohler Diesel KDW1003DieselLiquid & radiator1028 cc (62.7 cu. in.) cc23.4 HP @ 3600 RPM36.8 ft-lbs35.6 litre Diesel - two independent 17.79L tanks with selector valve

Suspension Seat

452kg (Tractor only - deck not included)H
https://walkermowers.com.au/wp-content/uploads/2022/01/Group-746-3.pngKohler KT620CarbAir660 cc (40.3 cu. in.)21 HP @ 3600 RPM35.9 ft-lbs11.36 litres

Comfort Seat

183kg (Tractor only - Deck not included)R
https://walkermowers.com.au/wp-content/uploads/2021/12/Group-1134.pngKubota Diesel D722DieselLiquid & radiator719 cc (43.9 cu. in.)20.9 HP @ 3600 RPM34 ft-lbs17.8 Litres

Suspension Seat

435kg (Tractor only - deck not included)D
https://walkermowers.com.au/wp-content/uploads/2021/12/Group-1283-2.pngKohler Command Pro ECH749, EFICarbAir747 cc (45.6 cu. in.)26.5 HP @ 3600 RPM40 ft-lbs17.8 Litres

Comfort Seat

357kg (Tractor only - Deck not included)T
https://walkermowers.com.au/wp-content/uploads/2021/12/Group-1279-1.pngKohler Command Pro CH680CarbAir674 cc (41.1 cu. in) cc22.5 HP @ 3600 RPM36.6 ft-lbs17.8 litres

Comfort Seat

358kg (Tractor only - Deck not included)T
https://walkermowers.com.au/wp-content/uploads/2021/12/Group-1276.webpKohler Command Pro CH620CarbAir674 cc (41.1 cu. in.)19 HP @ 3600 RPM35 ft-lbs15.1 litres

Standard Seat

333kg (Tractor only - Deck not included)C
https://walkermowers.com.au/wp-content/uploads/2021/12/Group-1274.webpKohler Command Pro ECH749, EFIEFIAir747 cc (45.6 cu. in.) cc26.5 HP @ 3600 RPM40 ft-lbs17.8 litres

Comfort Seat

277kg (Tractor only - no deck)B
