3 in 1 Walker Multi-Deck

March 01

Why is the Walker Multi Deck for me?

3-in-1: Grass Collection | Side Discharge | Mulch

Pro Z Used Lawn Mowers

The versatile MULTI-DECK™ is available in a 42” or 48” cutting width, a favourable size for commercial mowing applications. This cutting deck has the capability to collect, side-discharge or mulch the grass. True to the Walker reputation, it does each job beautifully!

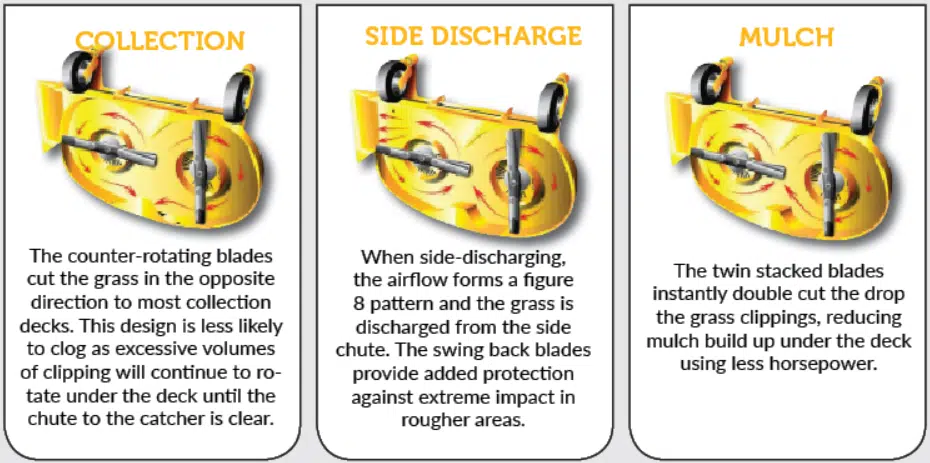

How it works:

Simple and straightforward baffle system changes the cutting modes without tools. The baffles are secured with thumb screws to achieve the various configurations.

The tilt-up Multi-Deck allows quick and free access to the underside of the deck. As a result changeover between cutting modes is done in less than a minute! Therefore when investing in a Walker Mower you get quality, versatility, and a machine that will always mow your lawn beautifully!

Designed to be a single mower solution for manicured turf and rougher field-type grass, the Multi-Deck is your way to tackle both. The Multi-Deck allows you to effectively match the deck configuration to varying property types, and grass conditions throughout the growing season. So whether collecting thick, spring turf or side-discharging dryer season grass, the Multi-Deck is an easy and cost effective solution for your unique needs.

A key feature of the Multi-Deck is the belt drive design which delivers reduced noise, improved durability, and common rotating blades that allow both collection and side-discharge mowing. Furthermore the unique belt tensioner mechanism utilises a gas spring dampener for increased belt life, and also provides belt changes without requiring tools.

The Multi-Deck’s collection capability is impressive, and combined with Walker’s proven Grass Handling System® (GHS), makes grass collection fast, easy, and enjoyable. To convert the deck from collection to discharge, remove the end-cap from the deck housing and install the collection chute baffle and side discharge chute.

Just like other Walker decks, the underside of the deck housing and blades are accessible with the tilt-up function. The inset position of the left caster tire is aligned with the left mowing blade to optimise cut quality. This also enhances trimming performance on the left side of the mowing deck. The Multi-Deck uses Walker’s torsion-flex carrier frame to freely articulate and follow ground contour for a beautiful cut.


5 of the main advantages are;

  • TIME SAVING – One mower for three types of mowing
  • EFFICIENT – Quick, easy changeover of cutting modes. (no tools)
  • SATISFACTION – Professional results in each mode
  • QUALITY – High quality, fully welded construction
  • SAFETY – Swing back blades for protection against extreme impact
Pro Z Used Lawn Mowers

Best of all, this cutting deck is compatible with all Walker Mower GHS models. The three way benefits come at only a small extra cost to the standard deck!

Arrange a demo on your property today!
